Summarization:

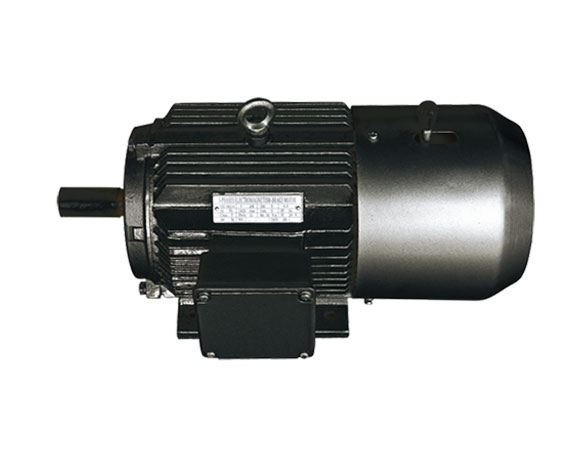

Y2E series motor is manufactured and built on the basis of Y2 series motor, with an additional discal direct-current electricmanget arrester between bracket and fan . The series is of high efficiency, saving the power, large starting torque, rapid brake, exact orientation, simple structure, easy maintenance, small vibancy, long life, no axis-directional displacement.
The series is used to drive various machine requiring rapid brake exact orientation, sport back and forth, such as hoist, foodstuff, light industry packaging, printing, construction, etc.
Eight kinds of motor has passed "CE" attestation, the production can export abroad.

Working condition:
1、Ambient operation temperature： It may vary with the changing weather but never exceeding 40℃.
2、Altitude： No more than 1000m
3、Rated Frequency：50Hz
4、Rated Volt：380-400V
5、Operation Mode：Continuous S1
6、Protection Grade：IP54 Arrester：IP54
7、Cooling Type：IC 411
8、Insulation Grade：F
9、Volt Of Braking：DC24V
Wiring： Y(the output is 3KW or below), others are △.
